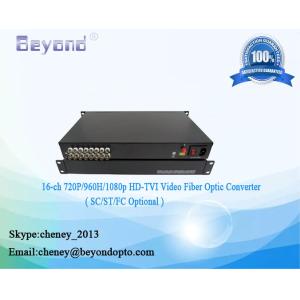

16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras

Product Categories

AHD Fiber Converter [8]
EFP fiber system [33]
Alarm/Ethernet/Telephone Multiplexers [6]
USB3.0/2.0 Fiber Extender [18]
Analog video,audio,Ethernet converter [21]
Audio Fiber Converter [49]
HD-CVI Fiber Converter [7]
HD-SDI Fiber Converter [38]
HD-TVI Fiber Converter [14]
HDMI Optical extender [18]
KVM Fiber Exte der [3]
Optical transceiver module [9]
RS485 Distributor [4]

ShenZhen Beyond Optoelectronoic Technology Co.,Ltd

Contact Now

720P HD-TVI coaxial cameras

Ask Lasest Price
Brand Name :	Beyondopto
Model Number :	BY-TVI-16V-1080P
Certification :	CE FCC ROSH
Price :	Negotiable
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	1000 pairs per pair FOB ShenZhen
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras

16 ch HDTVI TO Fiber Converter can simultaneously transmit 16 ch HDTVI +1 ch RS485(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30. Lossless non-compression real time transmission.

Features
1. High definition, Lossless non-compression real time transmission
2. Auto recognition of input video format as 25/30/50/60fps@720P & 25/30fps@1080P
3. UPnP, easy installation
4. Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5. Industry-grade of operating temperature from -30℃to 75℃
6. 19’’ 1U rack-mount chassis.
7. Optical interface: FC,ST, SC (optional)

Specifications
Opitcal:

Wavelength	1310nm&1550nm
Output Power	-6~-2dBm
Rx sensitivity	-22dBm
Transmission Distance	9/125u single mode, 20km
Optical connector	FC,ST,SC (optional)

Video:

Number of Channels	16
Input/output impedance	75Ω
Physical Port	BNC port
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Bandwidth	10bit
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°

Data:

Data protocol	RS485
Data rate	0~200 Kbps
Error rate	< 10^-9
Connector	Standard terminal lead

Other

Power	AC 90~240V
Power Consumption	≤15W
Temperature	-30ºC ~75ºC
Humidity	10%~90% RH
Unit Weight (pair)	7.5kg
Dimension	482mm×252mm×50mm
Package size	54×40×18cm
Installation	19’’ 1U rack-mount chassis
MTBF	≥ 100000Hours

System connection diagram

16-ch HD-TVI video to fiber converter,for 2-Mp/4-MP 1080P/960H/720P HD-TVI coaxial cameras
